NDE Nexus™ Suite

Features + Benefits
01

NDE Toolbox™ Software

  • Faster, more accurate analysis of complex NDE data.
  • Improves speed, reliability and sensitivity of inspections.
  • Reduces inspection costs and downtime for critical assets.
  • Increases asset availability by speeding decision-making and maintenance.
02

Nexus AR Glasses

  • Hands free access to data – View inspection parameters, procedures, and live readings directly in the headset—no need to hold a tablet or clipboard.
  • Reduced physical strain – Less twisting, bending, and equipment juggling in tight or awkward spaces, making long inspections less fatiguing.
  • Real-time guidance and recording – Adjust instruments, capture images, and log results on the spot, improving accuracy and reducing missed steps.
  • Improved safety in haradous areas – Keep eyes on surroundings and maintain full situational awareness while receiving instructions or overlay data, lowering risk in confined or high-risk environments.
03

Nexus AR Touch (Wrist Interface)

  • Quick one-hand control – Easily adjust inspection settings or navigate menus with a simple tap or swipe—no need to remove gloves or set down tools.
  • Immediate data capture – Record notes, tag defects, or save images on the spot without breaking inspection flow.
  • Compact and wearable – Keeps controls and information at arm’s length, reducing the need to carry or balance extra equipment in tight or elevated spaces.
  • Integrated with AR goggles – Works seamlessly with the headset for synchronized commands and displays, giving inspectors a smooth, efficient hands-free workflow.

04

Nexus Edge Processor

  • Real-time data processing – Analyzes inspection signals and images on site, so inspectors get instant results without waiting for uploads or remote servers.
  • Reliable mobile-friendly field performance – Designed to operate in hangars, flight lines, or shipyards with minimal network connectivity, ensuring inspections continue uninterrupted.
  • Enhanced accuracy and analytics – Supports advanced algorithms—like Assisted Defect Analytics—to detect flaws and provide precise measurements while the inspection is underway.
  • Streamlined workflow – Stores and syncs inspection data directly with the AR goggles and wrist interface, reducing post-inspection paperwork and speeding up reporting.

05

NDE Nexus Cobot

  • Save time and lower costs with faster, repeatable inspections and automated defect analytics.
  • Increase accuracy through stable robotic positioning and integrated data filtering.
  • Enhance safety by reducing physical fatigue and repetitive-motion stress.
  • Flexible deployment across different aircraft types.

06

NDE Nexus Suite (all of the above)

  • Seamless, End-to-End Workflow – Data moves instantly from the cobot’s inspection sensors to the Edge computer for processing, while results appear live in the AR goggles and wrist interface—eliminating manual transfers and duplicate work.
  • Maximum Efficiency & Time Savings – Robots handle repetitive positioning, AR provides hands-free guidance, and the Edge computer plus NDEToolbox™ deliver immediate analytics—cutting inspection and reporting time dramatically.
  • Higher Accuracy and Consistency – Combined robotic precision, real-time augmented reality feedback, and advanced analytics reduce human error and ensure consistent results across multiple aircraft or assets.
  • Improved Safety and Reduced Fatigue – Inspectors stay focused on technique and interpretation rather than equipment handling, lowering physical strain and enhancing situational awareness in tight or hazardous environments.
What we do

Discover the NDE Nexus™ Suite

NDE Nexus Cobot

Robotic precision that reduces fatigue and speeds up inspection workflows.

View Page

NDEToolbox™ Software

Powerful data analysis tools that turn complex NDE data into clear, actionable insights.

View PAge

Nexus AR Glasses + Touch

Smart goggles and wrist interface for hands-free control and real-time visualization.

View Page

Nexus Edge Processor

On-site processing power that connects every component for instant results.

View Page
Specs/Description

Modern Approach & Sustainable Results

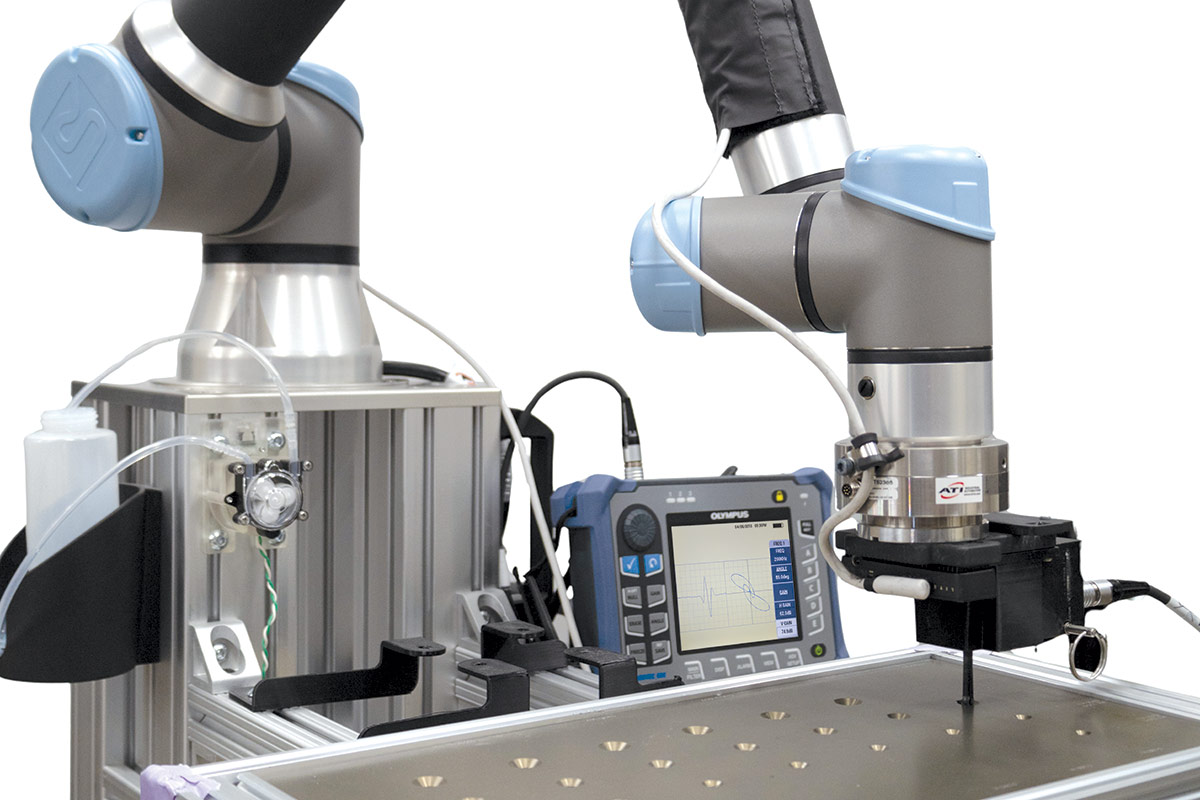

NDE Nexus Cobot

Universal Robots (UR 5e)

  • Ultrasonic (UT) Inspection Fixture
    • Ultrasonic Probe: Sensor Networks Matrix Phased-Array Probe
    • Inspection Instrument: ZETEC TOPAZ
  • Bolt-Hole Eddy Current (ET-BH) Inspection Fixture
    • Bolt-Hole Scanner: Olympus MiniMite Scanner
    • Inspection Instrument: Olympus Nortec 600

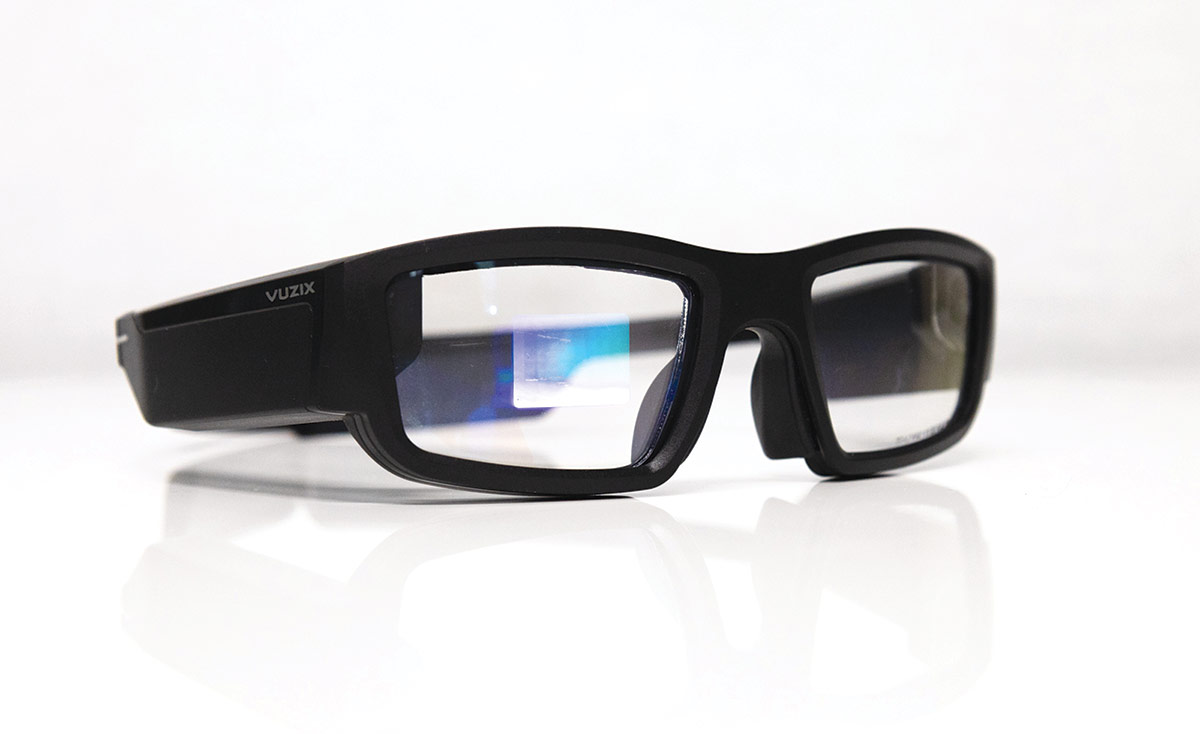

Nexus AR Glasses

  • Nexus-AR Glasses
    • Vuzix Blade 2
    • Custom application (developed by TRI-Austin)
      • Easy to use user interface (UI)
      • Provides live display from inspection instrument
        • View displayed from UniWest EVi
          • Impedance Plane
          • C-Scan
      • User can change instrument setting via.
        • Voice commands
        • Navigating UI to the settings tab using the touchpad on glasses

Nexus AR Touch

  • Nexus-Interact (wrist wearable device)
    • Android touchscreen device with MagSafe wrist attachment
    • Alternative device to the AR glasses
    • Custom application (developed by TRI-Austin)
      • Easy to use user interface (UI)
      • Provides live display from inspection instrument
        • View displayed from UniWest EVi
          • Impedance Plane
          • C-Scan
      • User can change instrument setting via.
        • Voice commands
        • Navigating UI to the settings tab using the touchpad on glasses

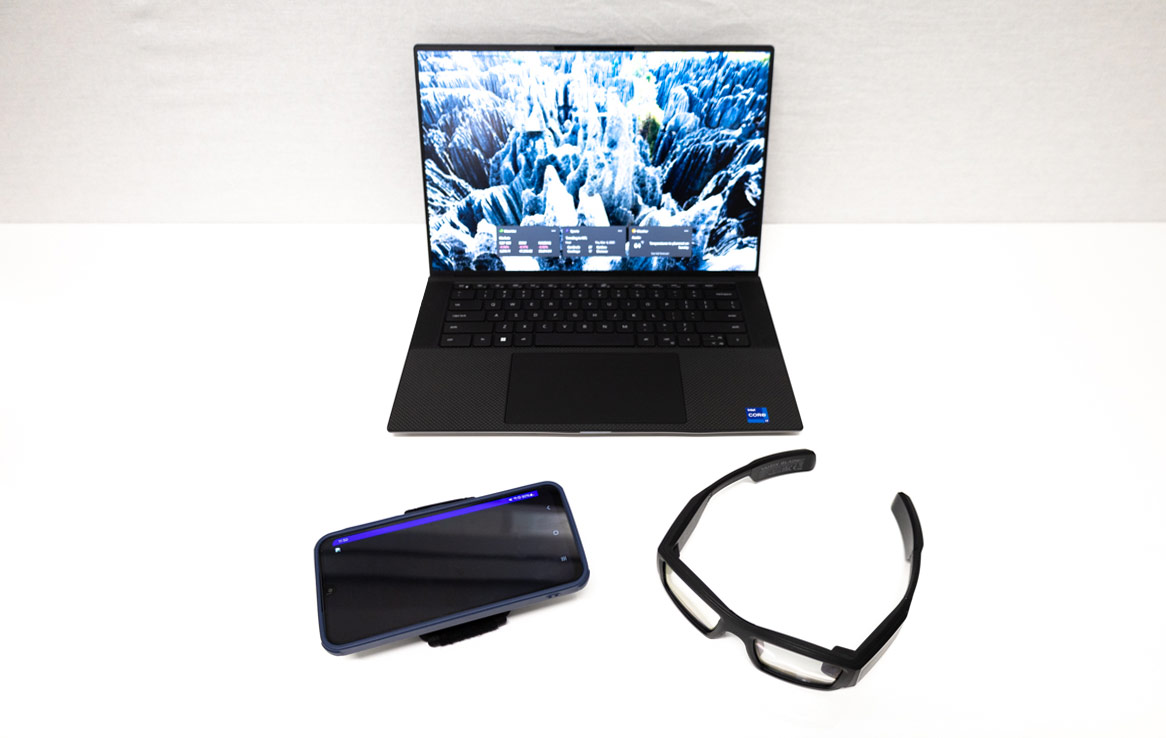

Nexus Edge Processor

  • Laptop device
  • Hosts its own server
  • Allows devices to interact with the inspection instrument
